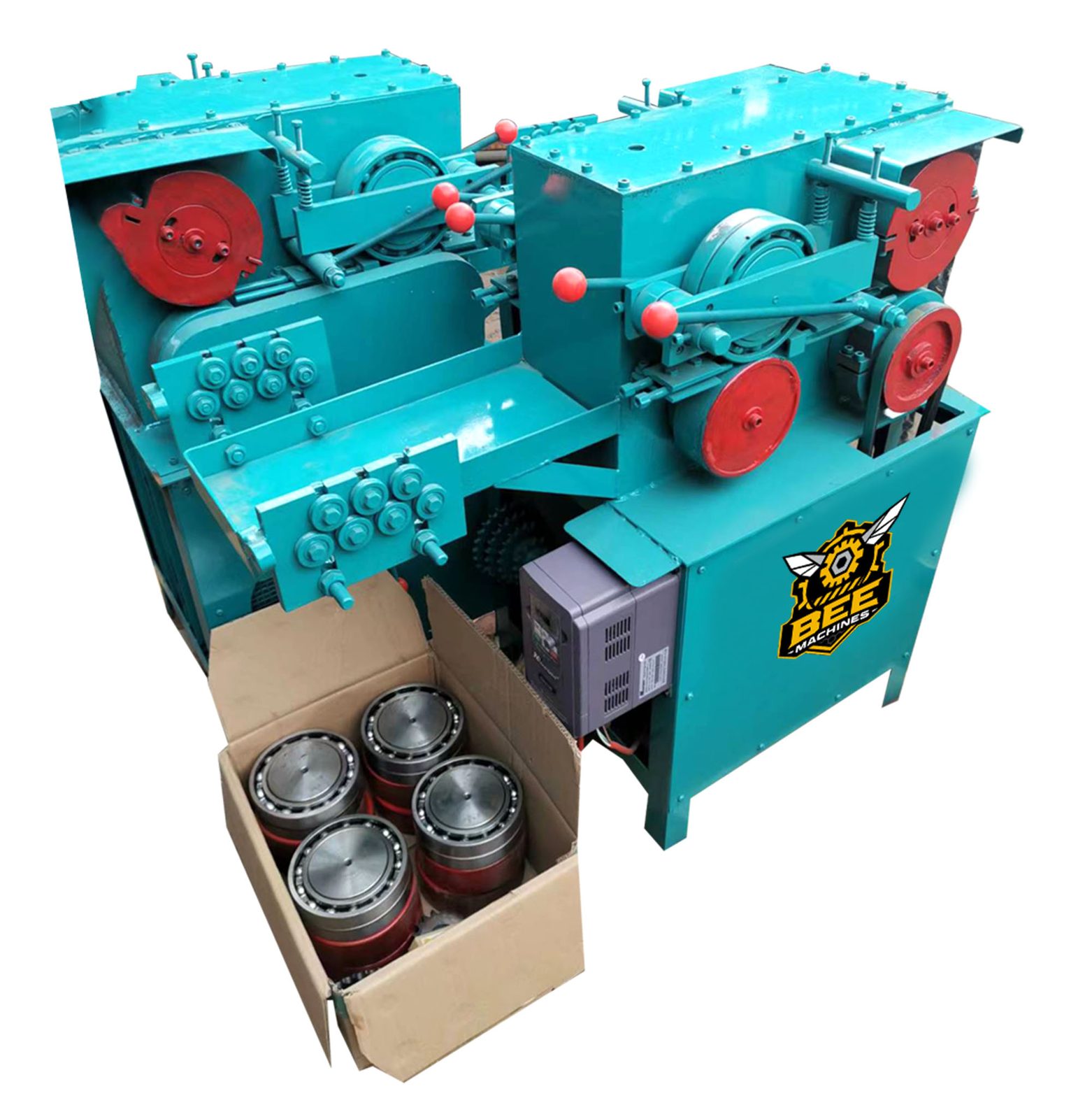

Wire Straightening and Cutting Machine, 4 Head

Send an inquiry

Every machine is built to your product size, volume and power supply, then quoted with freight to your port. Tell us what you produce and we will come back with a specification and a price.

(OD: 0.7– 2.0MM; Max Length: 30inch sparkler wire); 4pcs cutting header; 120m/min

SKU: BM-SP-01
Category:
Tags:

Description

What it does

Straightens iron wire from the coil and cuts it to sparkler length. Head count sets the output.

Before you order

Confirm wire gauge range and cut lengths. A four head and a six head machine differ in output, not in capability.

Where it sits in the line

Stage 1 of the Sparkler Line: Wire preparation.

What it produces

14,400 cutting per 8 hour shift, 316,800 per month.

Calculated from the factory’s rated output of 2sec/cutting, on one 8 hour shift and 22 working days. No allowance for changeover or downtime.

Quoted to specification. Machines are built to your product, volume and destination. Send us your requirement and we will quote the machine or the complete line.

Watch the machine running

Specification

Machine Size (L x W x H)
200 x 150 x 165 cm
Gross Weight
1000 kg
Shipping Volume
4.95 CBM
Power Supply
380 V 3-phase 50 Hz220 V 2-phase 60 Hz
Purpose
(OD: 0.7 – 2.0MMMax Length: 30inch sparkler wire)4pcs cutting header120m/min
Rated Output
2sec/cutting

Quoted to specification. Machines are built to your product, volume and destination, then quoted with freight to your port.

The machine running

Filmed at the factory. Output shown is indicative and varies with your product, material and operator.

Where it sits in the line

Sparkler Line
  1. 1Wire preparation
  2. 2Chemical preparation
  3. 3Wire loading
  4. 4Dipping
  5. 5Drying
  6. 6Automatic line
  7. 7Packing

Also at this stage: Wire Straightening and Cutting Machine, 6 Head BM-SP-02
